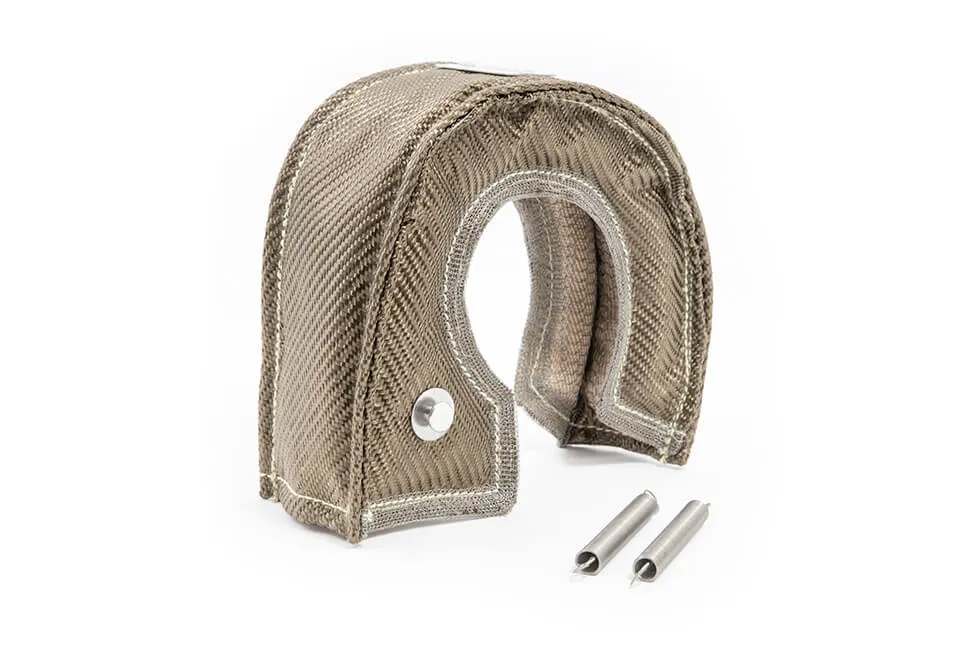

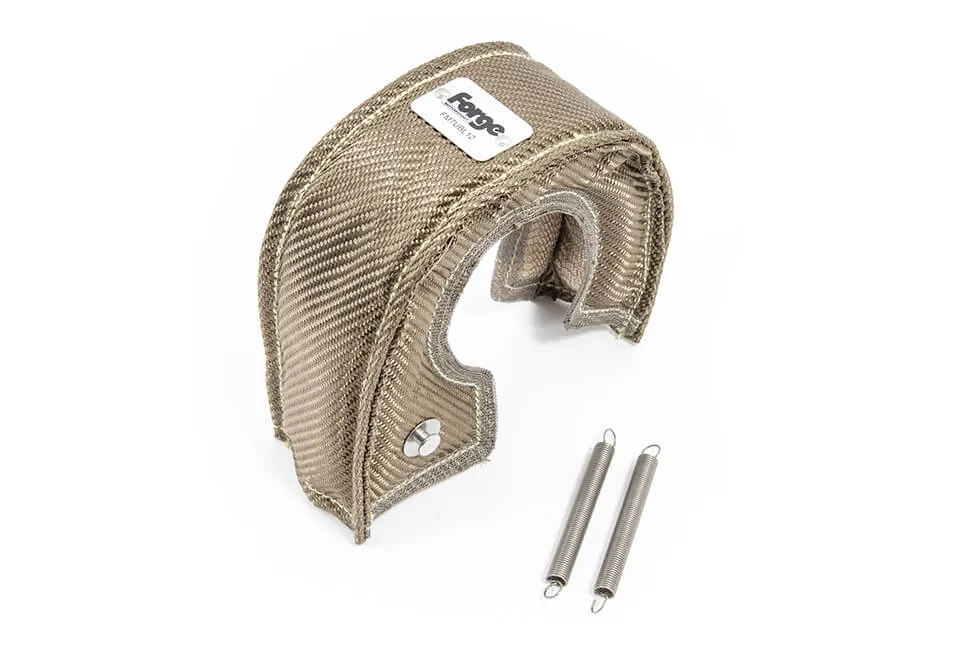

The Forge Motorsport FMTUBL12 has been designed for the use specifically with the externally wastegated Owen Developments GBT-5465-HTA/
The application also fits but is not limited to Garrett GT2254R, GT2560R, GT2871R, GT286ORS, GTX25/28, and TD04 14T, T25G, VF34, VF35, IGI VQ22 turbochargers. The turbo blanket also fits some internally gated turbochargers and is not limited to the above application list.
This turbo blanket is designed to isolate the radiant heat produced by the turbocharger insulating the hot side of the turbo’s compressor housing ensuring the cold side works to optimum efficiency. This design has been created to work in the harshest of environments and proven to withstand temperatures up to 2500 °F or 1370°C of radiant heat which will assist in protecting and prolonging the life of engine components. Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.
Please note that a turbo blanket will lose its flexibility over the first few heat cycles as the material cures, so once fitted it should not be routinely removed as this can cause damage to the blanket.
- Stainless Steel Rivets
- Carbon fabric outer shell
- Calcium Magnesium Silicate Wool constructed Inner Core
- High temperature Silica fabric
- To suit T25/T28 Turbo chargers
Toxicological and Ecological Information
Acute Toxicity: According to its composition, this product should not be harmful in normal conditions of use.
Local Effects:
- Inhalation: Possible irritation of respiratory system. At high temperatures, products of thermal decomposition can be irritating to respiratory system.
- Ingestion: Can be considered not harmful if swallowed.
- Skin Contact: Can be considered as non-irritating to skin. Contact with the product, when handled at high temperatures, cause serious burns. At high temperature, products of thermal decomposition can be irritating to skin.
- Eye Contact: Can be considered as non-irritating to eyes. Contact with the product, when handled at high temperatures, can cause serious burns. At high temperature, products of thermal decomposition can be irritating to eyes.
- Ecotoxicity: Inert material. Persistence and degradation: Not biodegradable on the base of its structure.
Other Information:
- The information given in this Material Safety Data Sheet is based on knowledge available at the time of compilation and is intended to describe the product only in terms of health and safety requirements. It does not signify any warranty with regard to specific properties or specifications. The present product is designed for general industrial use.
First Aid Measures:
Eye Contact: Remove particles remaining under the eyelids. Wash well open immediately, abundantly and thoroughly with water. If irritation persists, consult an ophthalmologist.
Skin Contact: Cool skin with cold water after contact with molten compound and remove product with vegetable oil or paraffin. In case of adhesion, do not try to remove the product. Treat the affected areas as thermal burns.
Inhalation: Dust inhalation, inhalation of vapours from heated products, inhalation of vapours due to thermal decomposition. Move to fresh air and in case of persistent problems consults a doctor.
